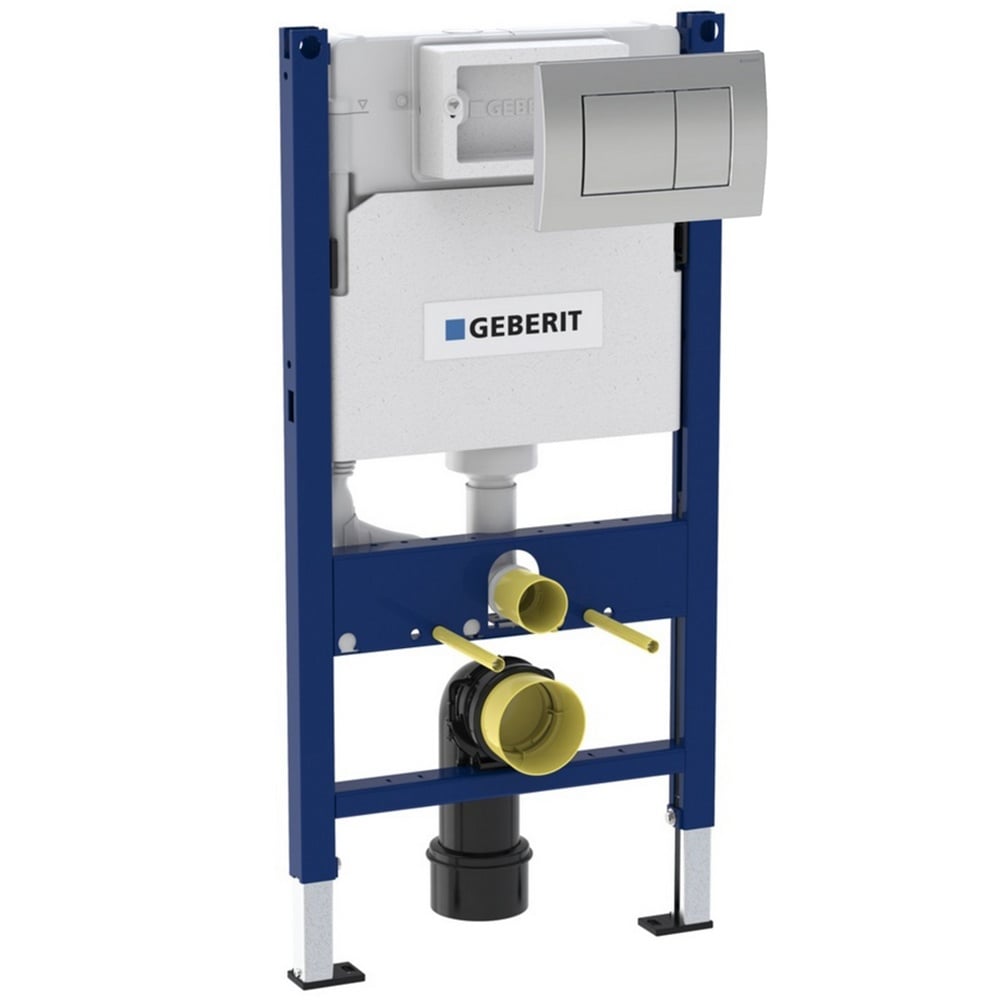

Geberit Delta Blue Frame 98cm & Cistern For Wall-Hung WC, Plus Delta30 Flush Plate

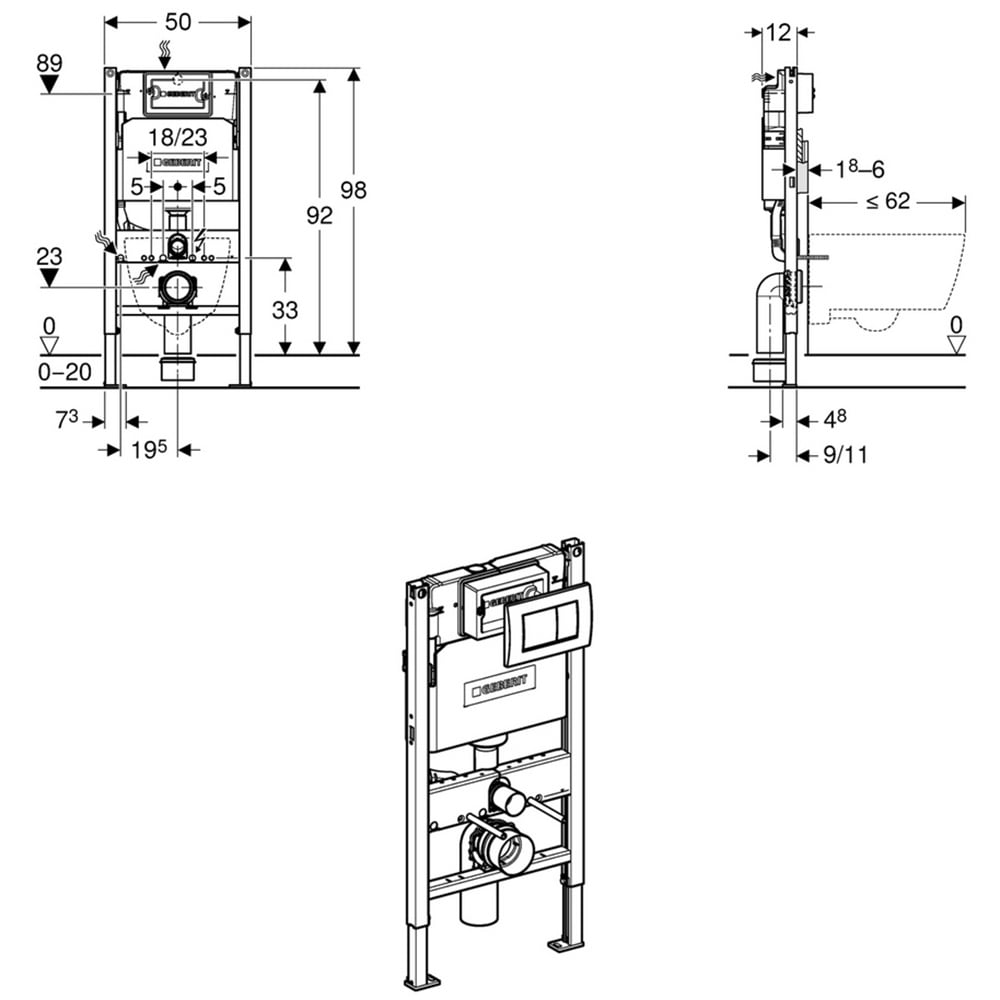

Dimensions

• Height: 980mm
• Width (Front to Back): 500mm
• Depth (Top to Bottom): 120mm

Product Features

• Weight: 28.55
• Style: Contemporary
• Colour: Blue
• Material: Powder Coated Steel,Blow Mold Plastic
• WRAS Approved: Yes
• Guarantee [it:6]: 5 Year manufacturers guarantee against manufacturing defects
• Self-supporting frame, powder-coated
• Frame with 9mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Feet adjustable 0-20cm
• Connection bend can be mounted without tools
• Concealed cistern with front actuation, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection

Additional Information

• Dual Flush Technology: Choose between two flush volumes to conserve water.
• Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability.
• Compatibility: Works with all Geberit flush buttons, making it versatile for various bathroom aesthetics.
• Easy Maintenance: Flush plate removal grants quick access to all essential components, with Geberit offering a 25-year spare parts guarantee.
• Strength: Engineered to support up to 400 kg (63 stone), ensuring stability without wobbling.
• Hygienic: Wall-mounted, keeping the floor clear of pipes and exposed surfaces where dirt and bacteria could gather.
• Simple Maintenance: Accessible parts make for easy repairs and adjustments.
• Noise Control: Designed with acoustic solutions for quiet operation.
• Long-Lasting: Proven technology with over 70 million installations.
• Water Tightness: Each cistern is tested individually for impermeability.
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0-20cm
• Maximum operating temperature, water 25 C
• Flush volume, factory setting 5.8 and 3l
• Flush volume large, adjustment range 4.5 / 6 / 7.5l
• Flush volume small, adjustment range 3-4l

Guarantee

5 Year manufacturers guarantee against manufacturing defects.The guarantee does not cover damage caused during fitting, or caused by poor installation or servicing, accidental or malicious damage, improper use or negligence, discoloration due to long exposure to sunlight or UV lights, and general wear and tear to the item and or working parts of the item (for example, the valve in a tap, shower heads, washers, seals, any item that would be expected to be replaced periodically during the life of the item). Any working part as stated above would be covered by a 6-month warranty unless stated longer. This warranty does not affect your statutory rights.

Contents

• Delta30 Chrome Flush Plate
• Angle stop valve R 1/2", compatible with MF, with adapter ring
• Protection box for service opening
• 2 distance bolts, 2 wall anchors
• Connection set for WC, 90mm
• Connection bend 90 made of PE-HD, 90mm
• Adaptor socket made of PE-HD, 90 / 110mm
• 2 protection plugs, 2 threaded rods M12
• Fastening material
