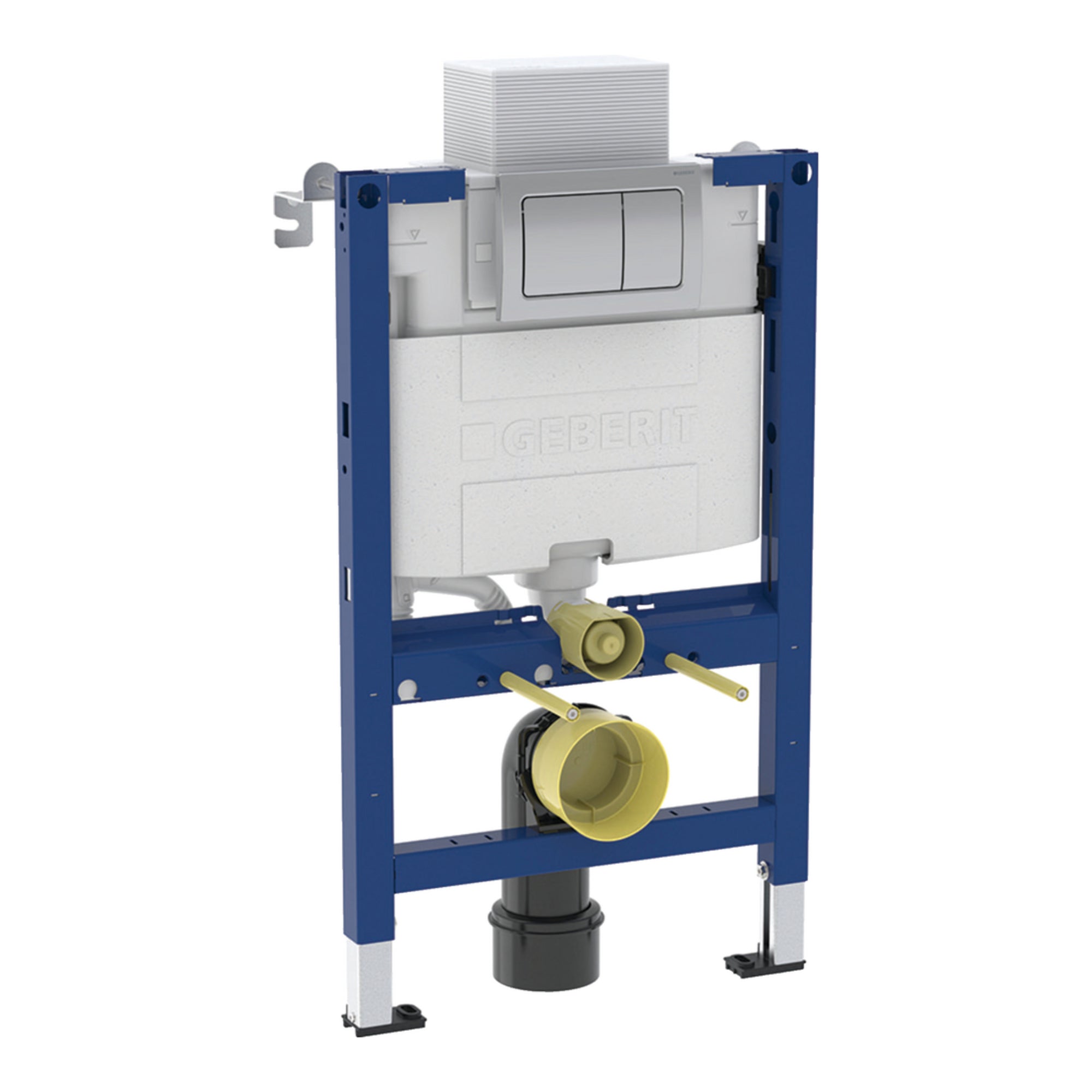

This Geberit Alpha 82cmH Frame & Cistern with an Alpha01 Square Chrome Flush Plate provides an innovative concealed solution for wall-hung WCs in small spaces opening up opportunities when it comes to the design of your bathroom.
Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas.

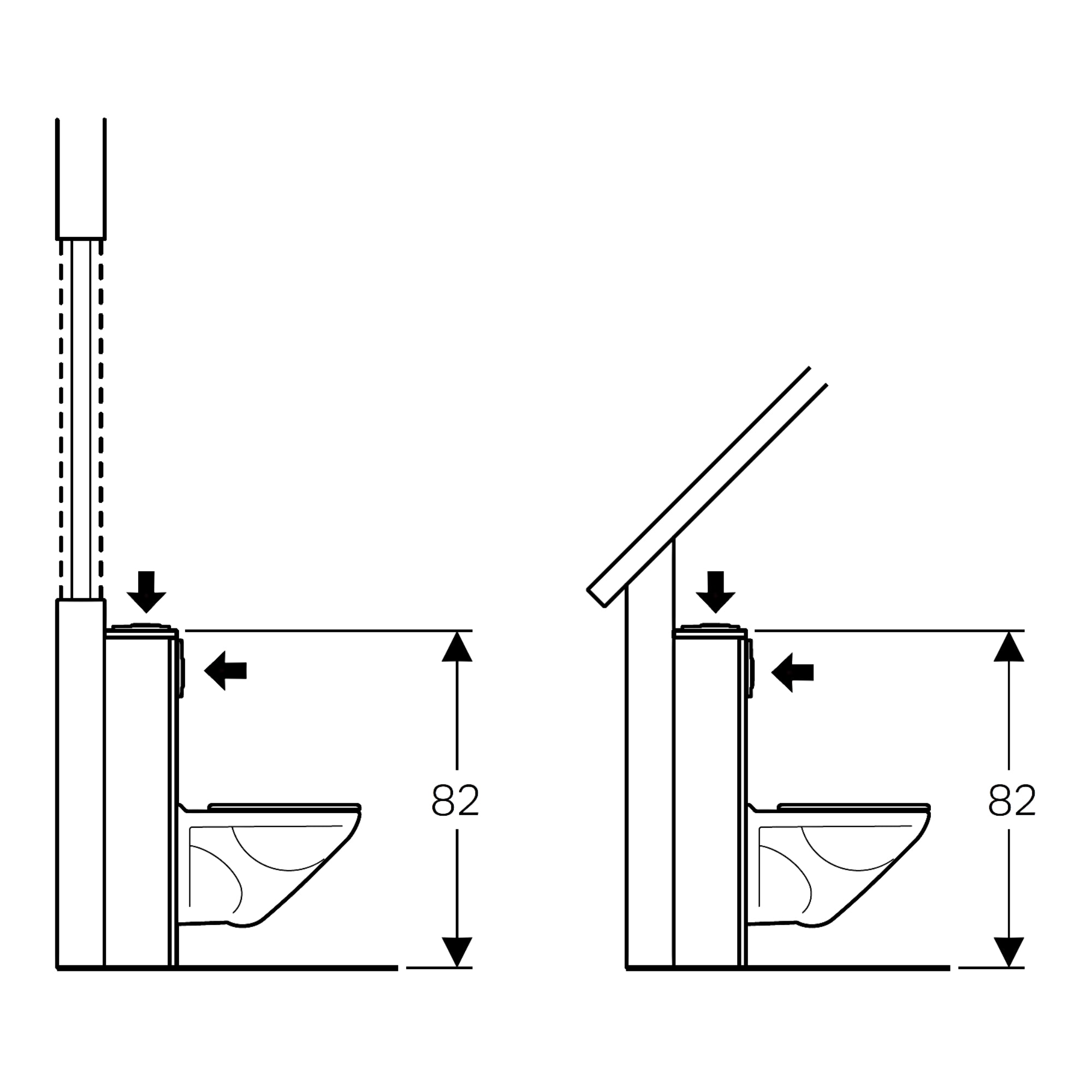

Whether you're upgrading your ensuite, optimising a small space, or installing a wall-hung WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency.
Application Purposes:
• Designed for Wall-Hung WC’s
Key Features:
• Space-Saving: Installation height of 82cm, making it ideal for compact bathrooms, ensuites & part-wall installations
• Dual Flush System – Designed for efficient water usage, offering dual flush functionality via top or front actuation.
• AquaClean Compatibility: Includes a conduit pipe for Geberit AquaClean shower toilets and an electrical connection fastening option
• Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability.
• Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments
• WRAS approved
What’s Included:
• Alpha01 Square Chrome Dual Flush Plate
• Water supply connection unit R 1/2", with integrated angle stop valve and adapter ring
• Protection box for service opening
• 2 wall anchors and 2 fixing brackets
• Connection set for WC, ø90mm
• Connection bend 90° made of PE-HD, ø90mm
• Adapter socket made of PE-HD, ø90/110mm
• Fastening and protection materials
Application Purposes:
• For part height installations
• For floor constructions 0–20cm
• For wall-hung WCs in accordance with EN 33:2011, & projections up to 62cm
Features:
• Powder-coated self-supporting frame
• Galvanised leg supports protected against corrosion, foot plates made of plastic
• Tool-free connection bend mounting
• Top or front actuation
• Cistern fully insulated against condensation, fulfils standard EN 14055, Class II
• Water supply connection on the rear or top centre
• Conduit pipe for Geberit AquaClean shower toilets & fastening option for electrical connections

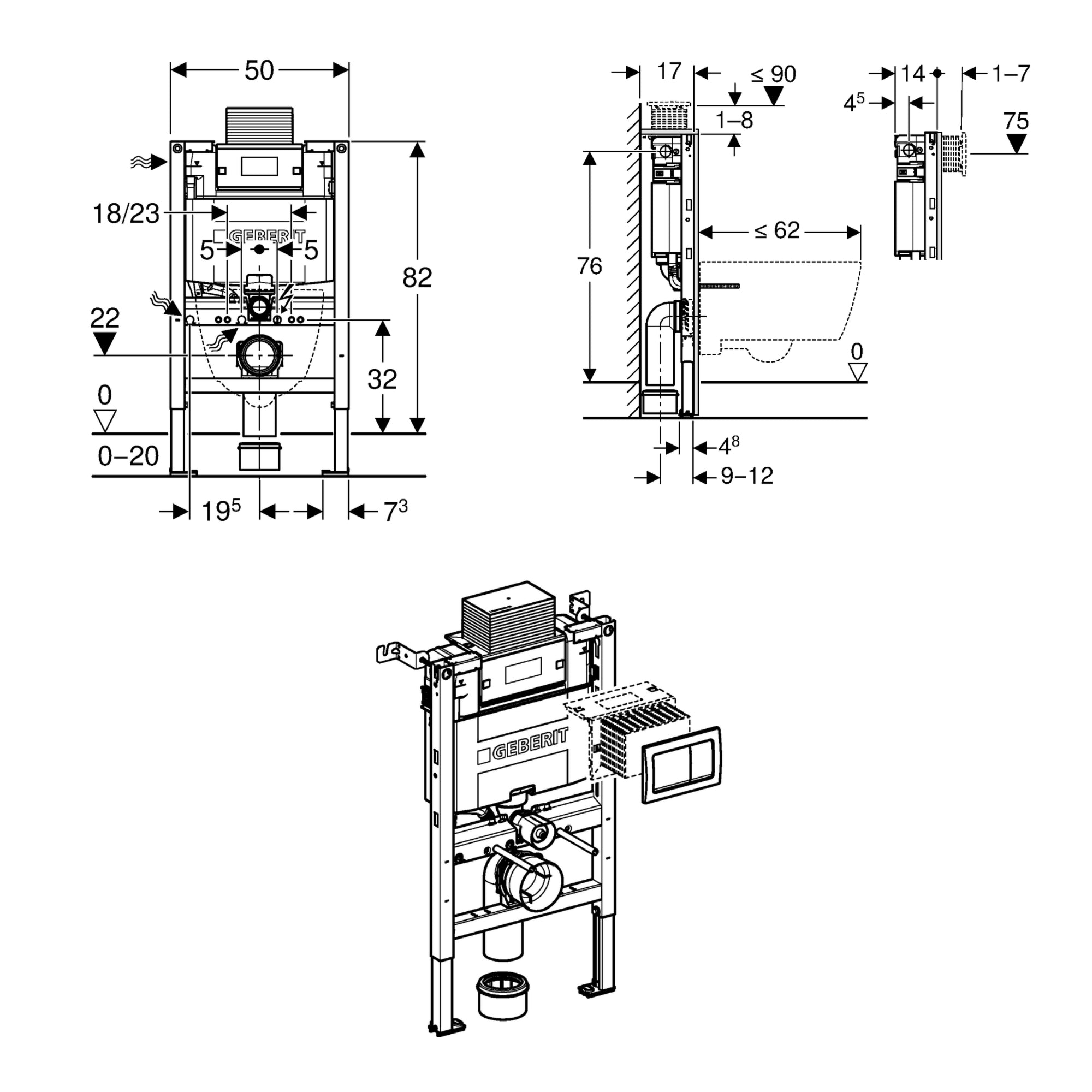

Technical Data:
• Flush volume, factory setting 5.8 l/3l
• Flush volume small, adjustment range 3–4l
• Height: 82cm
• Width: 50cm
• Depth: 17cm
