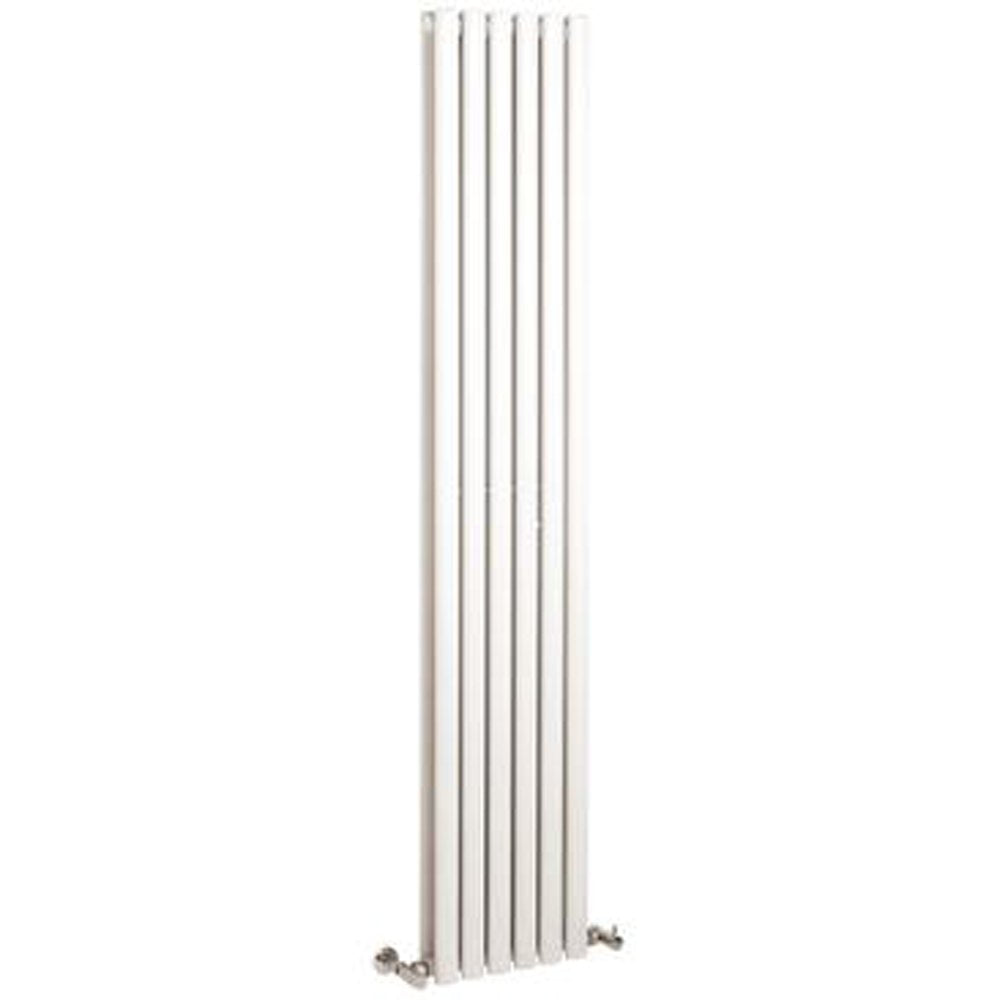

Hudson Reed Revive 1800x354mm White Double Panel Radiator HL326

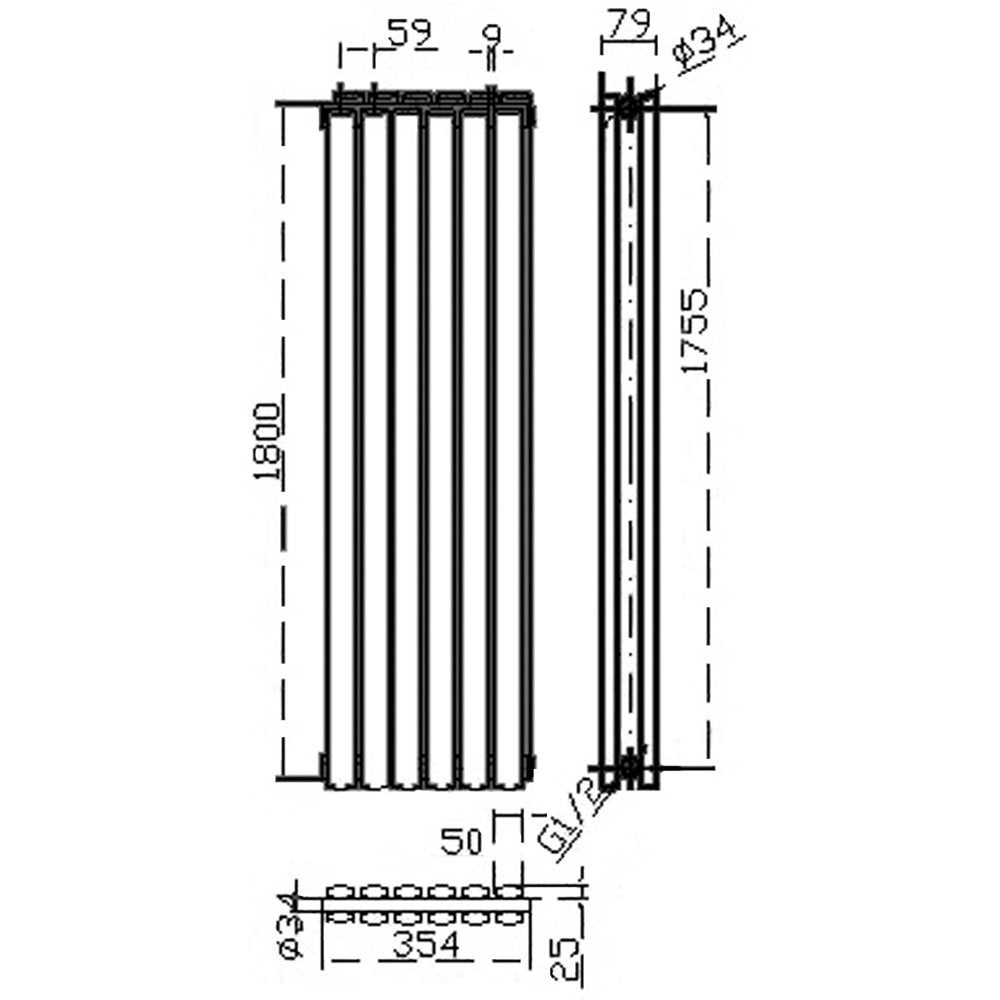

DIMENSIONS

• Height 1800mm
• Width (Front to Back) 354mm
• Depth (Top to Bottom) 85mm

PRODUCT FEATURES

• Colour White
• Finish Gloss
• Material Steel
• Installation Wall mounted
• Guarantee 5 Year manufacturers guarantee against manufacturing defects

Additional Information

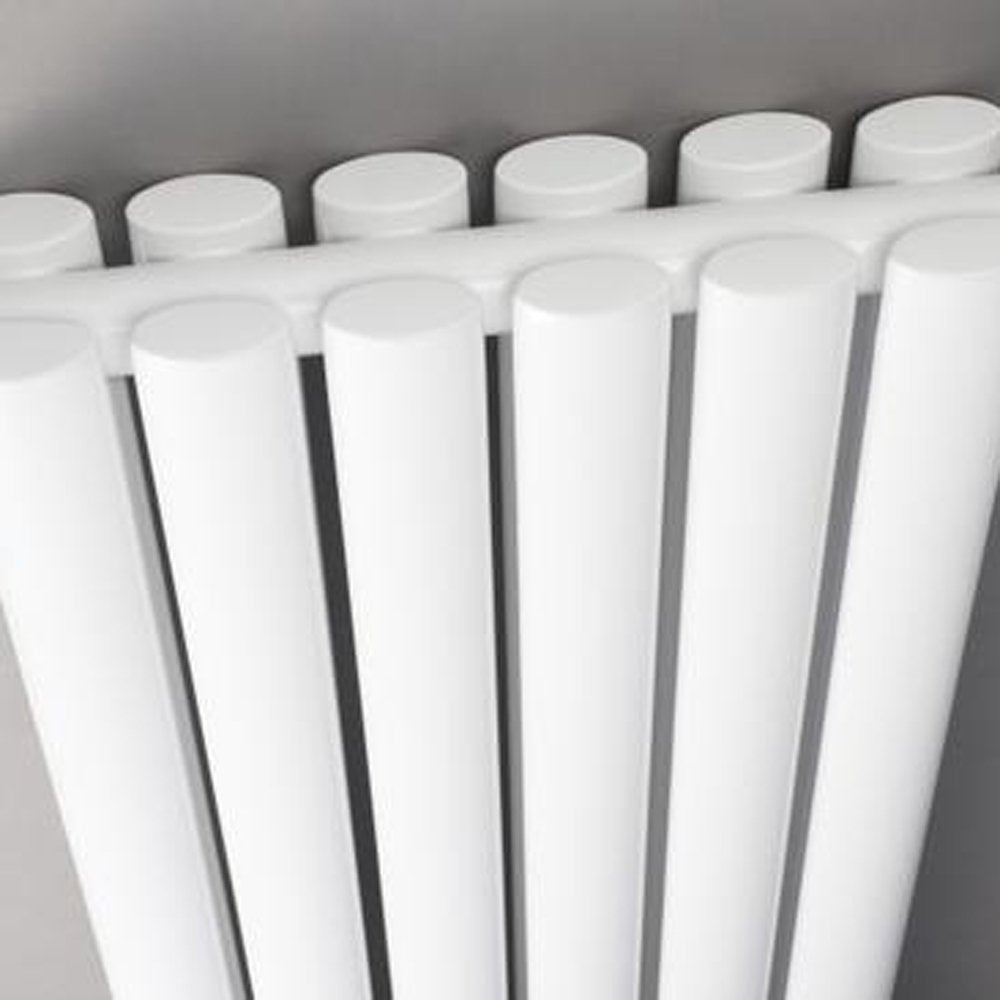

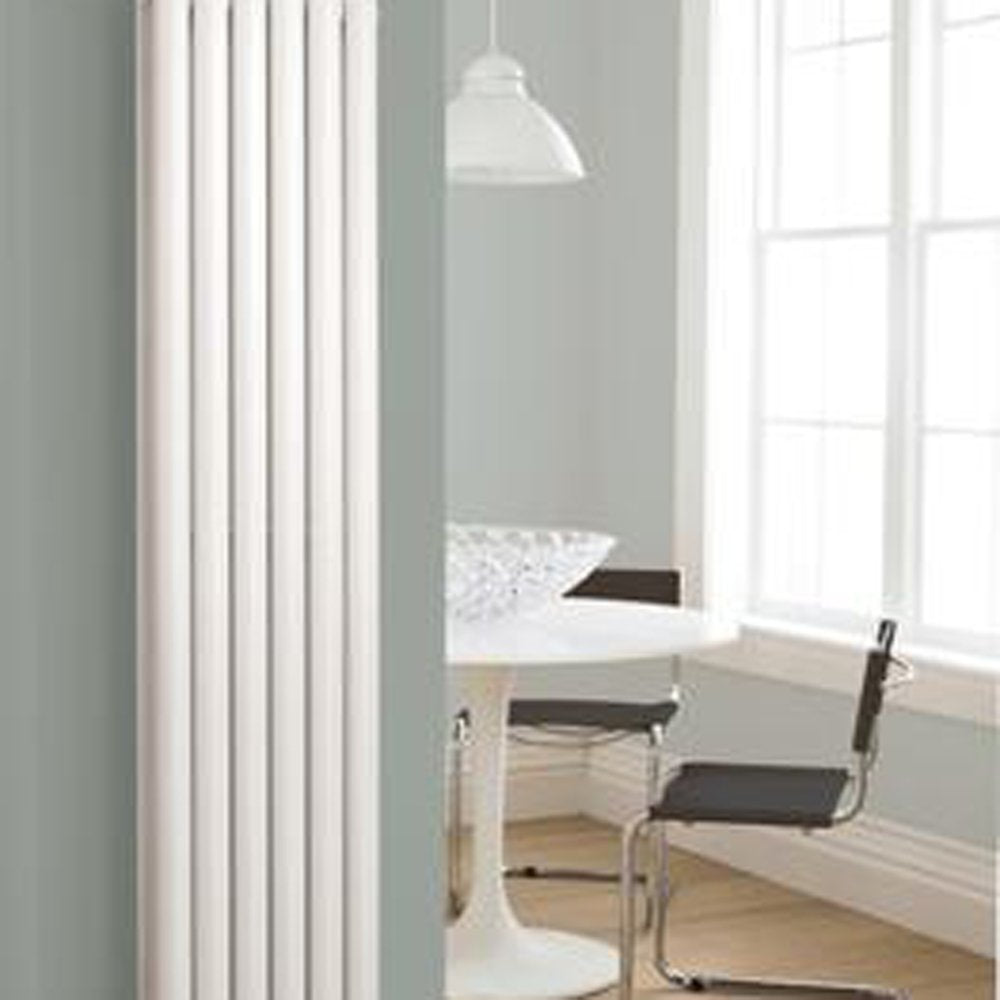

• This rounded edged radiator will be a classic and simplistic feature in any setting
• All heating products come complete with fixing screws
• Valves & brackets sold separately
• After installating any new radiators; when refilling the system it is recommended a suitable inhibitor is used
• All tappings are 1/2 British Standard Pipe
• We recommend pipework is not installed until receipt of radiator or heated towel rail

Specification:

• Wall to Centre of Tappings: 70
• BTU @ 60 Degrees: 4609
• RAL Number: 9016
• BTU @ 50 Degrees: 3638
• Thermal Output @ 60 (W): 1321W
• Pipe Centres (mm): 444MM
• Thermal Output @ 50 (W): 1066W
• Type Of Heat: Water
• Mount Type: Wall Mounted
• Number Of Heat Settings: 1
• Number Of Sections/Panels: 12
• Product Orientation: Vertical
• Brackets Included: Yes
• Assembly Required: No
• Commercial Use: No
• Projection: 110MM
• Installation Required: Yes

Useful Installation Information

• For maximum heat output, we recommend you to install this radiator with one feed entering the top and one at the bottom of the radiator to ensure the complete radiator will heat up when it is in use. Installing both feeds at the bottom of the radiator may result in the radiator not completely heating up at the top of the panel due to gravity and physics.

Guarantee

5 Year manufacturers guarantee against manufacturing defects. The guarantee does not cover damage caused during fitting, or caused by poor installation or servicing, accidental or malicious damage, improper use or negligence, discoloration due to long exposure to sunlight or UV lights, and general wear and tear to the item and or working parts of the item (for example, the valve in a tap, shower heads, washers, seals, any item that would be expected to be replaced periodically during the life of the item). Any working part as stated above would be covered by a 6-month warranty unless stated longer. This warranty does not affect your statutory rights.

About the Brand

Hudson Reed - part of Ultra Finishing Ltd - is one of the most established names in the UK bathroom industry and truly is your home for bathrooms. Exceptional quality is a key factor contributing to Ultra's success, and they are also a proud member of the prestigious Made in Britain scheme. They are dedicated to bringing you the latest designs utilising the most up-to-date technology.

With an unsurpassed reputation for quality, the Hudson Reed product range provides a thoroughly dependable design solution for any modern bathroom. The is manufactured to the highest standard. You should expect nothing less from a company with over two decades of manufacturing experience which has provided Hudson Reed with extensive market knowledge and the ability to offer the most popular styles at affordable prices.
