UK Bathroom Electrical Zones: What You Need to Know
Written by: Taps UK
|
Published on
|
Time to read 5 min
Bathroom electric zones explained is one of the most important topics to understand when planning or updating a bathroom. Water and electricity don’t mix, so strict UK rules define exactly where electrical items can be installed safely.
These zones are set out in the UK wiring regulations (BS 7671) and apply to everything from lighting and extractor fans to showers and sockets. If you get this wrong, you risk safety issues and failing compliance checks. This guide breaks down each zone clearly, along with IP ratings and what you can install in each area.
Table of contents
What Are Bathroom Electrical Zones?
Bathroom electric zones explained refers to dividing your bathroom into specific areas based on how close they are to water sources like baths, showers, and basins.
The closer you are to water, the stricter the rules. This reduces the risk of electric shock and protects both people and electrical fittings.
Key points to understand:
Zones are based on distance from water
Each zone has rules for voltage and IP ratings
All installations must comply with UK regulations
These zones aren’t optional. Any electrical work in a bathroom must follow them.

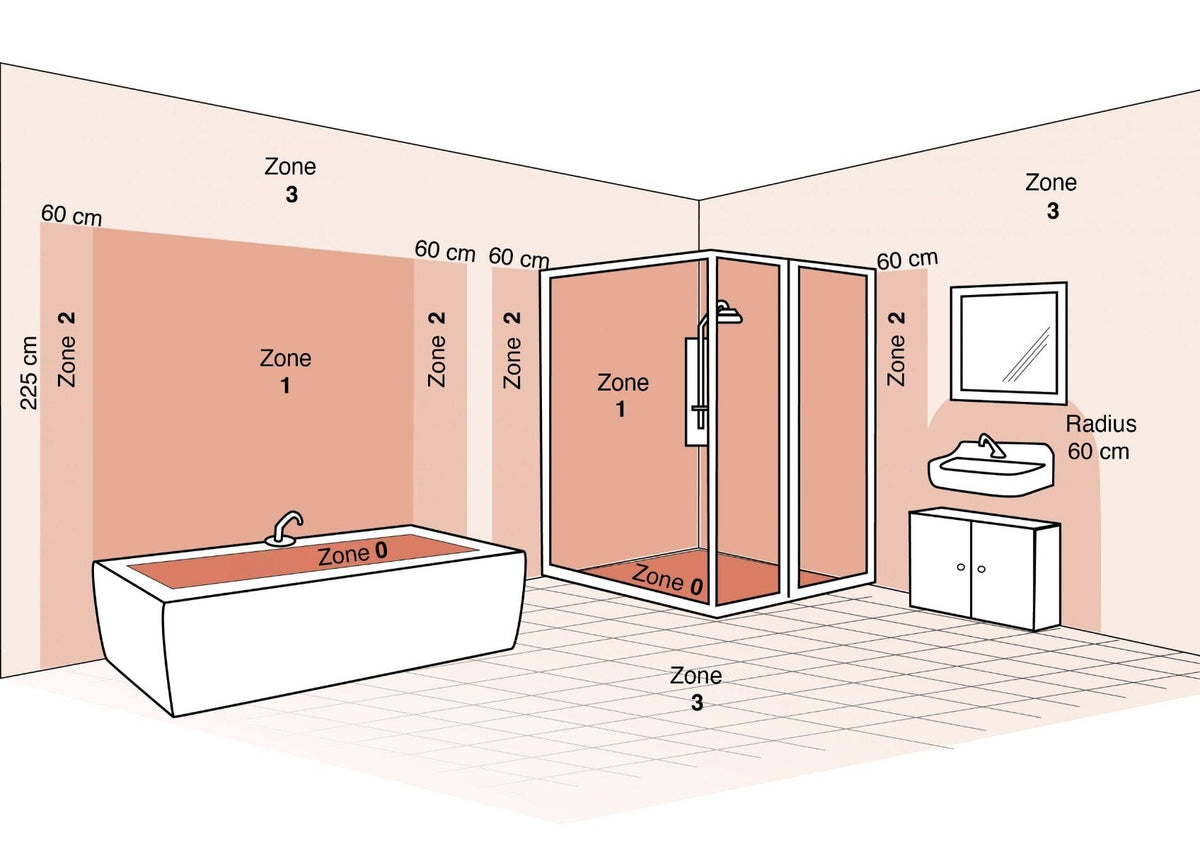

Overview of Bathroom Zones
Zone
Area Covered
Typical Use
IP Rating
Zone 0
Inside bath or shower
Submerged areas
IPX7
Zone 1
Above bath/shower (up to 2.25m)
Lighting, showers
IPX4+
Zone 2
0.6m outside bath/shower
Lights, fans
IPX4+
Outside Zones
Beyond Zone 2
Sockets, switches
Standard
Zone 0 Explained
Zone 0 is the most restricted area in the bathroom. It includes the inside of the bath or shower tray where fittings may be fully submerged.
Because this area is in direct contact with water, only very specific electrical items are allowed.
Rules for Zone 0:
Maximum 12V low voltage only
Must be rated at least IPX7 (protected against immersion)
Any transformer must be located outside Zone 0
In reality, very few products are installed here. You may see waterproof LED lighting designed specifically for submerged use, but most bathrooms avoid electrical fittings in this zone altogether.
Zone 1 Explained
Zone 1 covers the area directly above the bath or shower, up to a height of 2.25 metres from the floor.
This area is exposed to splashes and steam, so fittings must be water-resistant.
Rules for Zone 1:
Minimum rating of IPX4 (splash-proof)
IPX5 required if high-pressure water jets are used
Mains voltage (230V) is allowed if installed correctly
Switches should be pull cords or located outside the bathroom
Common installations in Zone 1:
Shower lighting
Extractor fans
Electric showers
When choosing products, always check the IP rating. Many modern bathroom lights are designed specifically for this zone.
Zone 2 Explained
Zone 2 extends 0.6 metres horizontally from the edge of the bath or shower and up to 2.25 metres high.
This area is less exposed to direct water but still needs protection from splashes and humidity.
Rules for Zone 2:
Minimum IPX4 rating
Wider range of fittings allowed compared to Zone 1
Typical products in Zone 2:
Wall lights
Mirror lights
Extractor fans
Shaver sockets (with built-in transformer)
This is a flexible zone where you can add practical and decorative features, as long as they meet the required rating.
Outside Zones
Outside zones refer to any area beyond Zone 2. These areas have the least restrictions but still require safe installation.
Rules for outside zones:
Standard electrical fittings are allowed
RCD (Residual Current Device) protection is required
General bathroom safety still applies
Common installations:
Standard plug sockets
Light switches
Heated towel rails
Decorative lighting
Even though restrictions are lower, placement still matters. Avoid positioning electrical items too close to water sources.
Understanding IP Ratings
A key part of bathroom electric zones explained is understanding IP ratings. These ratings tell you how well a product is protected against dust and water.
IP stands for Ingress Protection.
The rating is made up of two numbers:
First number = protection against solids (dust)
Second number = protection against water
In bathrooms, the second number is the most important.
Common ratings you’ll see:
IPX4 – protected against splashes
IPX5 – protected against water jets
IPX7 – protected against immersion
As a simple rule:
Zone 0 → IPX7
Zone 1 → IPX4 or higher
Zone 2 → IPX4 or higher
Always match the product rating to the zone it will be installed in.
UK Regulations You Need to Know
Bathroom electrical work in the UK must follow strict rules.
The main regulations include:
BS 7671 (IET Wiring Regulations)
Part P of the Building Regulations
These rules cover:
Safe installation practices
RCD protection requirements
Certification of electrical work
Important points:
Most bathroom electrical work must be carried out by a qualified electrician
Work may need to be certified and registered
Non-compliant installations can cause safety risks and legal issues
What Can You Install in Each Zone?
What Can You Install in Each Zone?
Zone 1
Shower lights
Extractor fans
Electric showers
Enjoy instant hot water, energy-efficient performance, and modern designs built to last. With features like limescale resistance and enhanced flow technology, Mira showers deliver consistent comfort every time you step in.
Always double-check product specifications before installing.
Common Mistakes to Avoid
Even with clear rules, mistakes still happen.
Watch out for:
Installing non-IP-rated lights near showers
Placing sockets too close to water
Ignoring zoning during renovations
Attempting DIY electrical work without certification
Using incorrect voltage in restricted zones
These mistakes can lead to safety hazards and failed inspections.
What are bathroom electrical zones?
Bathroom electrical zones are defined areas that regulate where electrical fittings can be installed based on their proximity to water.
Can you have sockets in a bathroom?
Yes, but only outside Zone 2. They must be RCD protected. Shaver sockets are allowed in Zone 2 if designed for bathroom use.
What IP rating do I need for bathroom lights?
Zone 0: IPX7
Zone 1: Minimum IPX4
Zone 2: Minimum IPX4
Can I install lights above a shower?
Yes. Lights must be rated at least IPX4, or higher if exposed to strong water jets.
Do I need an electrician for bathroom electrics?
Yes. Bathroom electrical work should be completed by a qualified electrician to meet UK regulations.
What is the safest area in a bathroom for electrics?
Areas outside Zone 2 are the safest and allow the widest range of electrical installations.
Conclusion
Bathroom electric zones explained gives you a clear framework for safe and compliant bathroom design. By understanding each zone and choosing the correct IP-rated products, you reduce risk and avoid costly mistakes.
If you’re planning a renovation or upgrade, use this guide to make informed decisions and always work with a qualified electrician.
